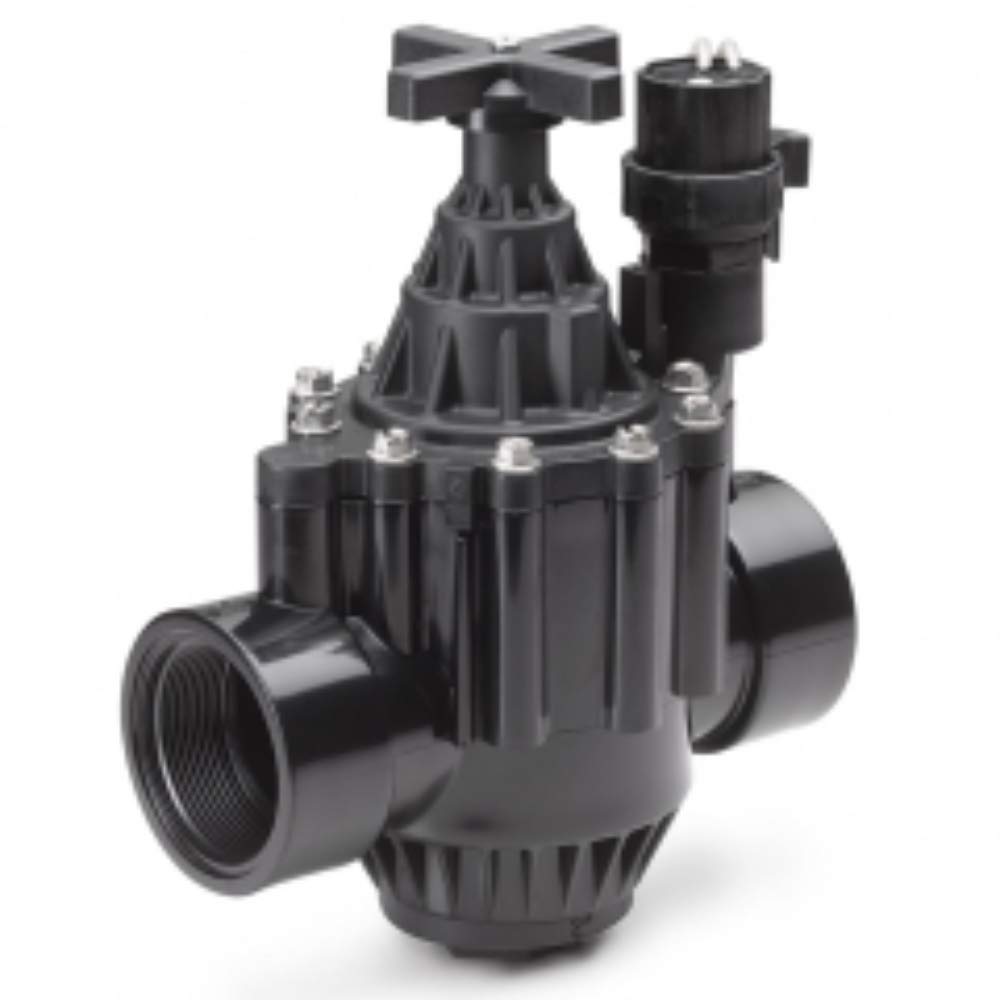

Rain Bird PGA Inline/Angle Valve with Flow Control 1 in. FPT | 100-PGA
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Rain Bird PGA Inline/Angle Valve with Flow Control Features
-
Size: one inch Globe and angle configuration for flexibility in design and installation.
-
Rugged PVC construction for reliable operation
-
Double-filtered pilot flow to resist debris and clogging of solenoid ports.
-
Non-rising flow control handle adjusts water flow as needed.
-
Accepts latching solenoid for use with Rain Bird battery-operated controllers.
About Rain Bird PGA Inline/Angle Valve With Flow Control
Product Information:The PGA Series offers versatility at an affordable price. Plastic globe/angle valve for residential/light commercial irrigation applications.Options (order separately)Accommodates field installed PRSD pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6,90 bar). Purple flow control handles for easy identification of nonpotable water systems. Models: PEBNPHAN1 (1") and PEBNPHAN2 (1 1/2" and 2"). Accepts latching solenoid for use with Rain Bird batteryoperated controllers up to 150 psi (10,35 bar).Rain Bird recommends: Flow rates in the supply line not to exceed 7.5 ft./sec. (2,3 m/s) in order to reduce the effects of water hammer. For flows below 5 GPM (1,14 m3/h; 0,32 l/s), Rain Bird recommends use of upstream filtration to prevent debris from collecting below the diaphragm. For flows below 10 GPM (2,27 m3/h; 0,63 l/s) Rain Bird recommends the flow control stem be turned down two full turns from the fully open position. Features:#149; Globe and angle configuration for flexibility in design and installation#149; Rugged PVC construction for reliable operation#149; Normally closed, forward flow design#149; Doublefiltered pilot flow to resist debris and clogging of solenoid ports#149; Slow closing to prevent water hammer and subsequent system damage#149; Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller#149; Onepiece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service#149; Nonrising flow control handle adjusts water flow as needed.
