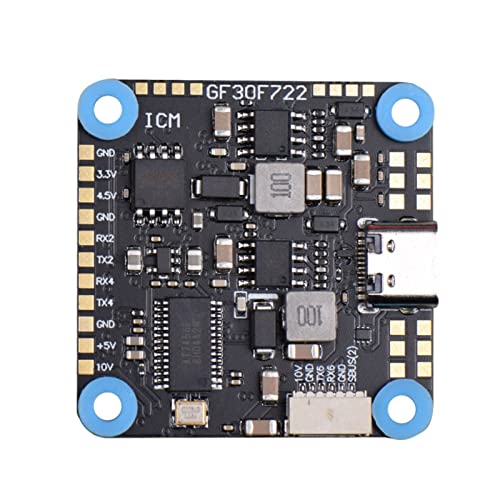

GoolRC GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller 3-8S 30.5X30.5mm for Remote Control FPV Freestyle Drone Parts
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
GoolRC GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual Features
-
GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller 3-8S 30.5X30.5mm for Remote Control FPV Freestyle Drone Parts
-
The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.
-
MOS adopts imported 30V high current resistance mos, long life and strong load capacity.
-
Using industrial grade LDO, high temperature resistance.
-
Using high-quality Japanese Murata capacitors, strong filtering performan.
About GoolRC GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual
Specifications: (Model): GF30F722-ICM (MCU) STM32F722RET6 (IMU) ICM-42688-P/Gyro/Accel (OSD): AT7456E (Baro) YES (Blackbox): 16MB (Input voltage): 3-8S Lipo(11.4-36V) 5V-BEC: 5V/2.5A +±0.1V 10V-BEC: 10V/2A(USER1) IO2: USER2 (Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX UART: UART1/2/3/4/5/6 1IC: 12C1 Led Strip:YES (Buzzer): 5V (ESCsignal): PWM，Oneshot125，Oneshot42.Multishot Dshot150，Dshot300，Dshot600 USB: TYPE-C (Current port): YES (Voltage sensor) YES DFU (DFU button): YES (Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX (Size): 36*36MM (Mounting Hole) 30.5*30.5*4MM (Weight) 8.8g Package Information: Package Size: 50*40*20mm Package Weight: 20g Package List: 1*F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller
