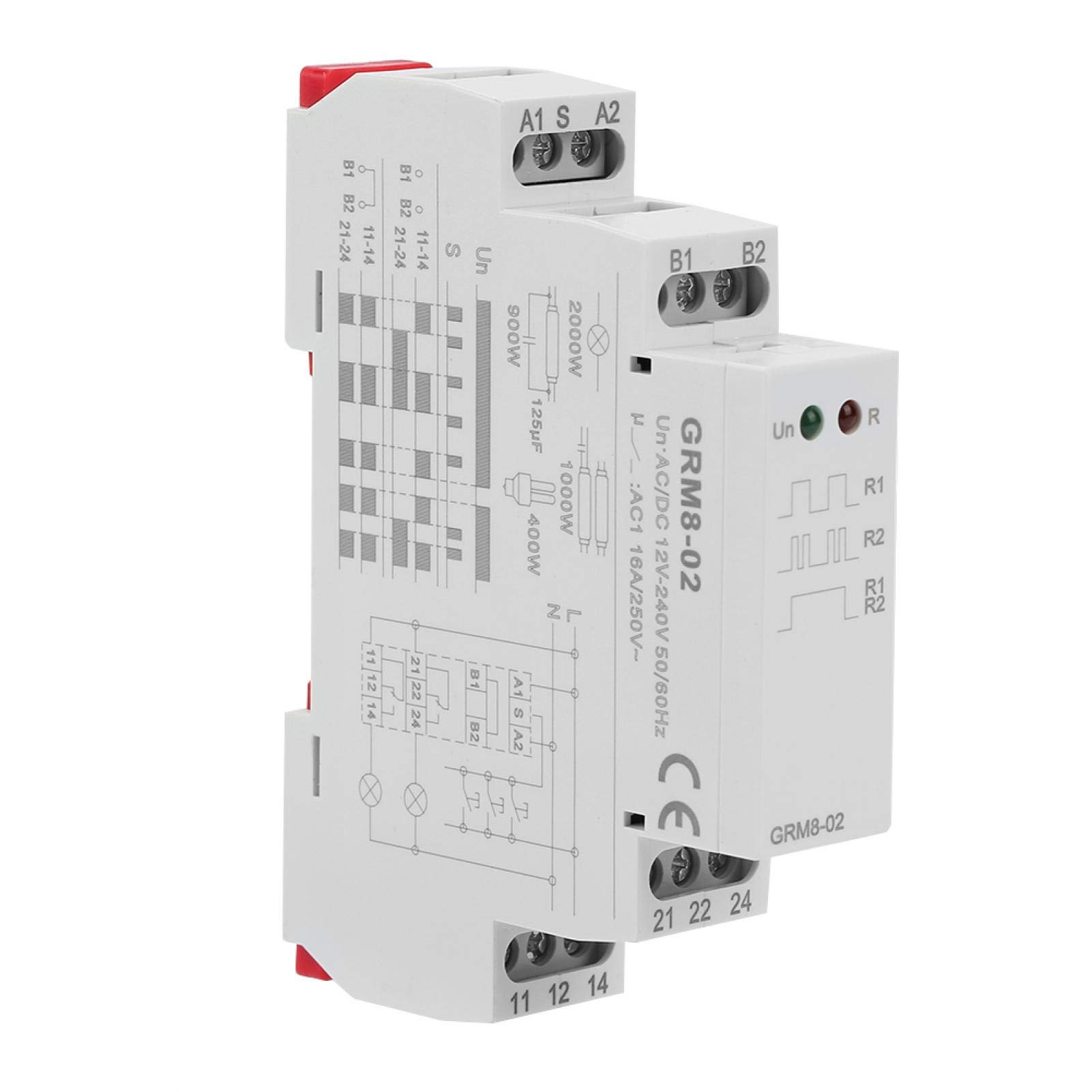

Relays Electronic Impulse Latching Relay, GRM8-02 Electronic Impulse Relay Latching Relay Memory Relay Din Rail,Electronic Impulse Relay
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Relays Electronic Impulse Latching Relay, GRM8-02 Features
-
Main feature: This impulse relay can achieve multi point control by impulse commands
-
LED display: Relay working status is indicated by LED indicators
-
Easy installtion: Electronic impulse relay with small volume, only 18mm width, 35mm DIN rail mount
-
Stability: Impulse memory relay has stable performance, long service life
-
Simple structure, easy to wire and mount
About Relays Electronic Impulse Latching Relay, GRM8-02
Specification: Model: GRM8-02 Power terminal: A1-A2 Rated power supply voltage: AC/DC 12-240V(50-60Hz) Power consumption: AC 0.09-3VA/DC 0.05-1.7W Supply voltage tolerance: -15%; +10% Power indicator: Green LED Control terminal: A1-S Control signal width: Min. 25mm Output contact: 2 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Weight: Approx. 97g/3.4oz Package List: 1 * Electronic Impulse Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
