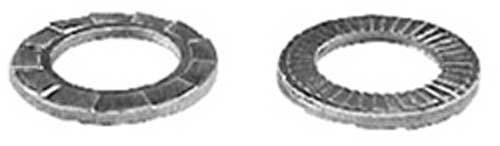

These washers have cams or wedges on one side, with a lead angle greater than a thread angle, and radial teeth or ribs on the other side. The washers are installed cam face to cam face. When tightening the fastener to preload, the teeth penetrate and seat against the joint material and the nut and/or fastener head. When subjected to vibration the interacting cams create a wedge action which prevents the fastener from vibrating loose. Vibration Proof Lock Washers For Use With Grade 5 & Grade 8 Bolts Zinc Plated Material: Carbon Steel Hardness: Through Hardened: Min. 44HRC, Max. 51 HRC Bolt Size: 1" (25mm) O.D.: 1-17/32" 10 (5 Pair) Per Package
